E660

 E660 was optimized with the application of a simple cycle. The high-pressure ratio design has been used which significantly improves the efficiency of the gas turbine & generator. E660 series are expected to have demonstration by the third quarter of 2021.

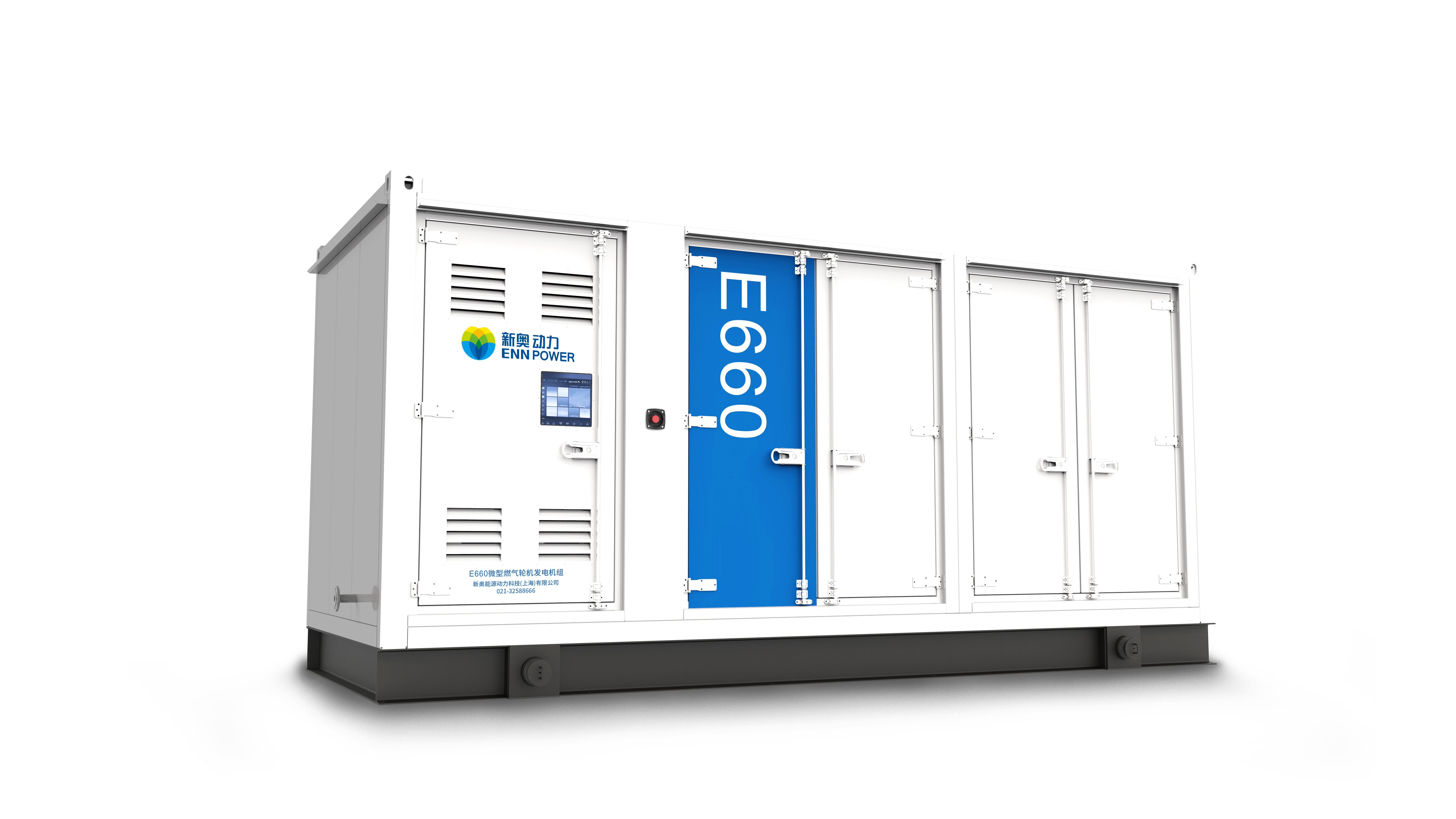

E660 Micro Gas Turbine & Generator Set

Thermal performance data
simple cycle gas turbine and generator set
Rated output power  655 kW
Rated power efficiency 22.1%
Exhaust temperature 524 ℃
Exhaust flow rate 3.92 kg/s
Natural gas consumption 314 Nm³/h
Environmental performance data
NOx* ≤ 25 ppm or 50mg/m³
Noise level TBD
Dimension parameters
simple cycle gas turbine and generator set
Boundary Dimensions 6058x2438x2896 mm
Weight TBD
CCHP data
simple cycle gas turbine and generator set
Cooling/heating power 2343/1503 kW
Cooling/heating area 26000-58600 ㎡
Cogenerated steam output of simple cycle gas turbine and generator set 2.3t/h
